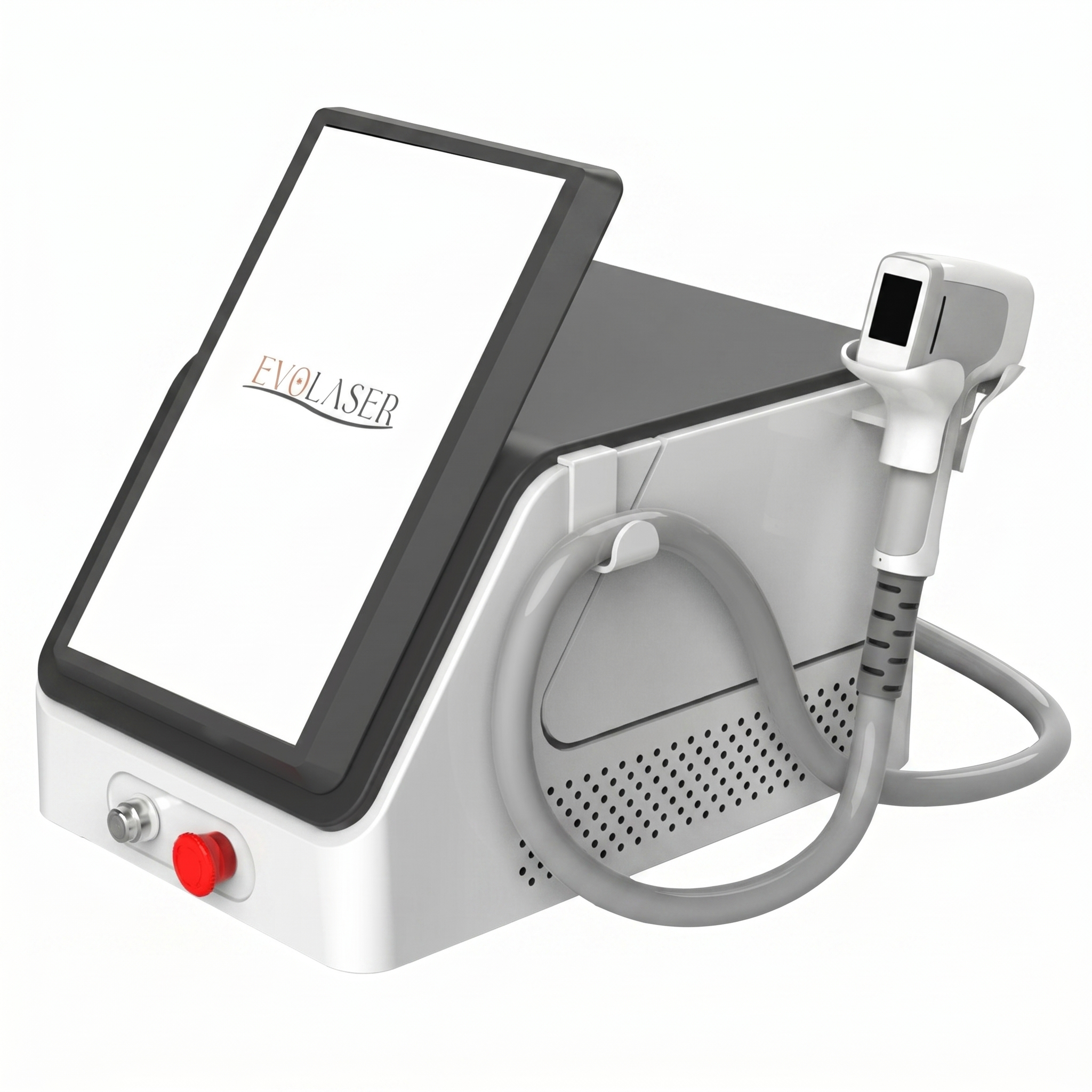

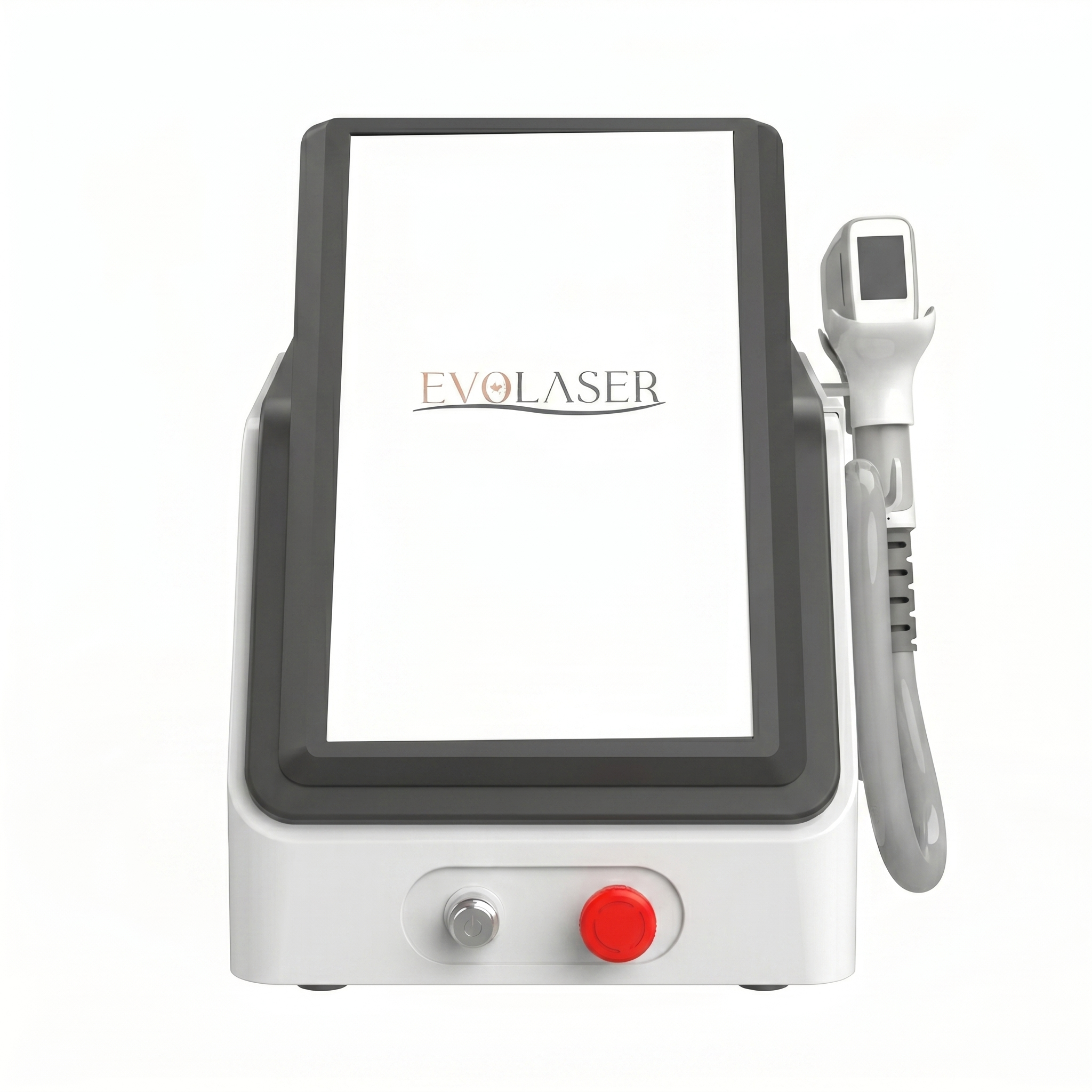

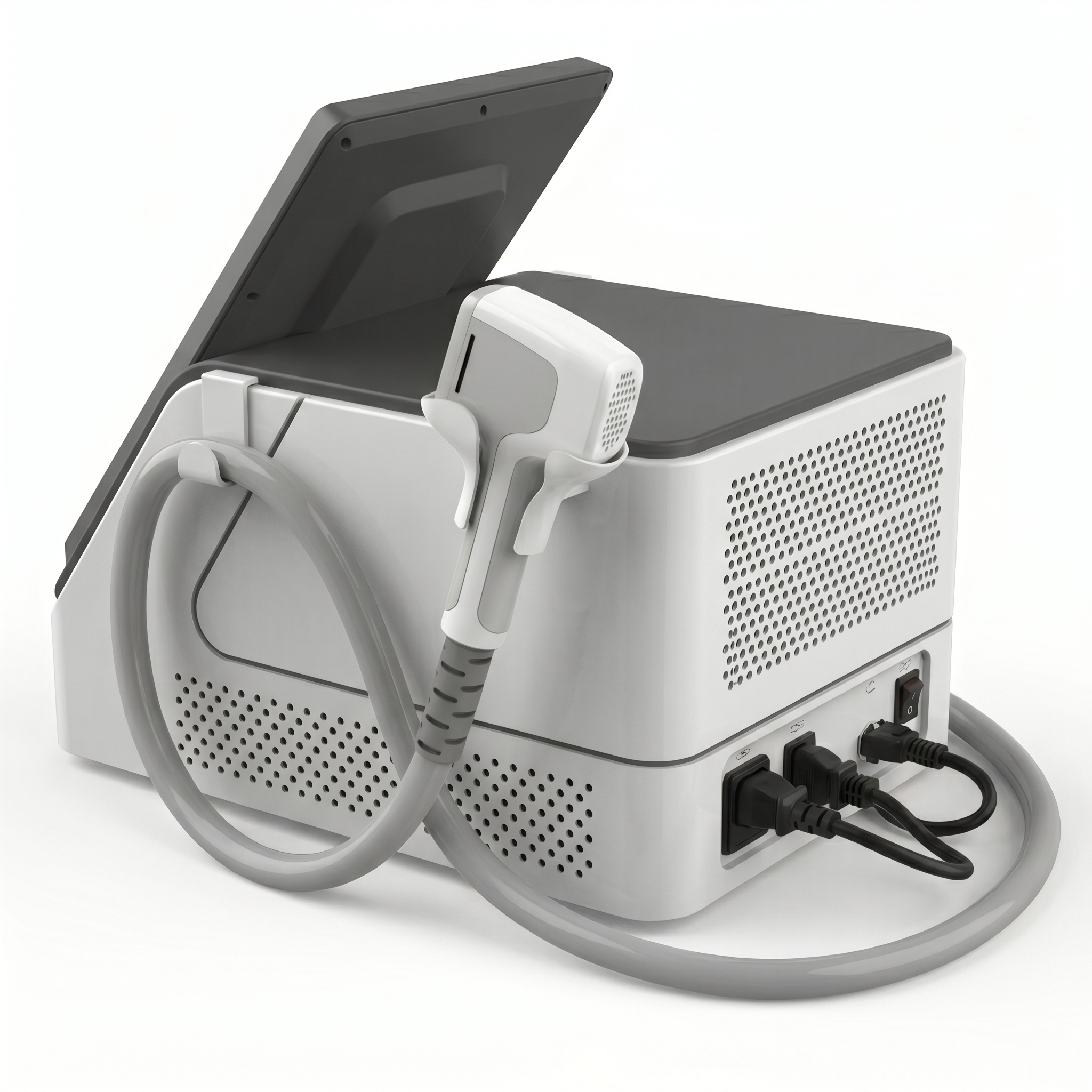

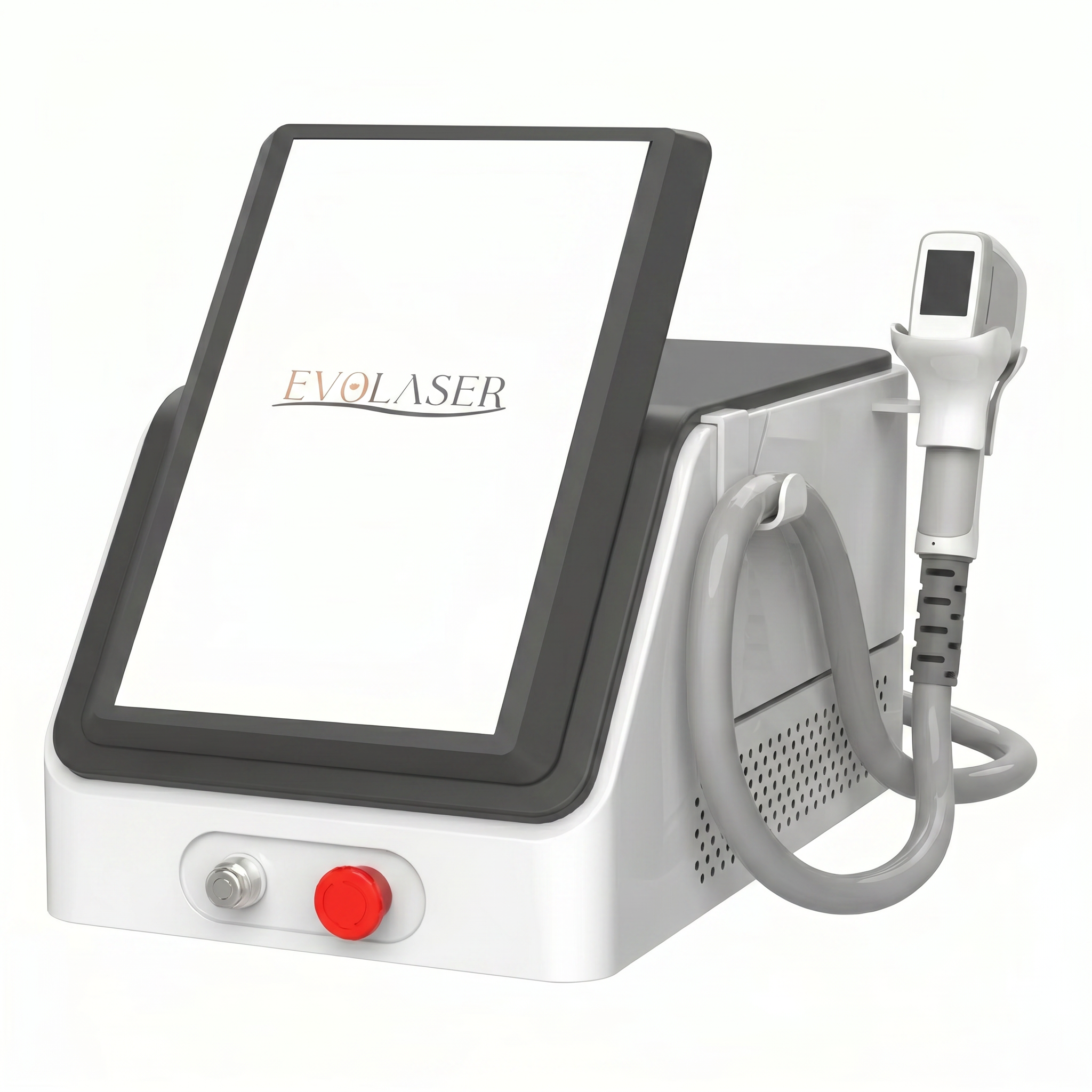

EVO Smart 1500W Quad Laser Hair Removal Machine

The EVO Smart 1500W Quad Laser is a next-generation diode laser hair removal device developed to provide high-performance treatments with maximum comfort, precision, and safety. Combining four advanced wavelengths in one system, the machine effectively targets different hair types, hair depths, and skin tones, making it suitable for a wide range of professional aesthetic applications.

Designed for clinics, dermatology centers, and beauty salons, the EVO Smart system integrates intelligent cooling, ergonomic handling, and powerful laser performance to deliver fast and reliable permanent hair reduction treatments.

Advanced Quad Wavelength Technology

The system combines four clinically effective wavelengths:

• 755nm – Ideal for light-colored and thin hair with shallow roots
• 808nm – Suitable for most hair colors and average root depth
• 940nm – Effective for darker hair with medium root depth
• 1064nm – Designed for deeply rooted dark hair such as back and bikini areas

This multi-wavelength technology allows practitioners to customize treatments according to the client’s skin type and hair structure, ensuring safer and more efficient results.

Intelligent Cooling & Safety System

The EVO Smart laser is equipped with a high-performance cooling structure to maximize patient comfort during treatments:

• Sapphire crystal cooling for excellent light and cold conductivity
• 360° cooling Peltier system for rapid skin cooling
• Real-time intelligent temperature monitoring
• Air + Water + TEC + Sapphire cooling system

These technologies help maintain stable temperatures while reducing discomfort and protecting the skin during long treatment sessions.

Premium Laser Components

The device features high-quality internal components engineered for stable and durable performance:

• USA Coherent laser bars for longer service life
• Collimator lens focus beam technology for uniform energy distribution
• Large 12×20mm spot size for faster coverage and treatment efficiency
• Stable energy output with adjustable intensity and pulse width settings

Smart User Interface

The ergonomic smart handle includes a synchronized HD color touchscreen that allows easy parameter adjustments directly from the handpiece. Operators can quickly control:

• Laser intensity
• Pulse width
• Frequency
• Start and pause functions

The intelligent intuitive user system also includes:

• HR Preset Mode for automatic treatment parameter recommendations
• HR Professional Mode for manual customization and advanced operation

Proven Clinical Results

Clinical studies have shown that over 95% of cases achieved more than 80% hair reduction after only 3 to 5 treatment sessions, making the EVO Smart system a highly effective solution for permanent hair removal treatments.

Technical Specifications

• Laser Power: 1500W
• Wavelengths: 755nm + 808nm + 940nm + 1064nm
• Spot Size: 12mm × 20mm
• Pulse Width: 10ms – 400ms
• Frequency: 1Hz – 10Hz
• Fluence: 0 – 120J/cm²
• Laser Intensity: 5% – 100%
• Cooling System: Air + Water + TEC + Sapphire Cooling
• Display: 15.6-inch large color touch screen
• Voltage: AC 220V/50Hz – 110V/60Hz

Ideal For

• Beauty clinics
• Dermatology centers
• Aesthetic clinics
• Professional laser hair removal specialists
• Med spas and skincare centers
